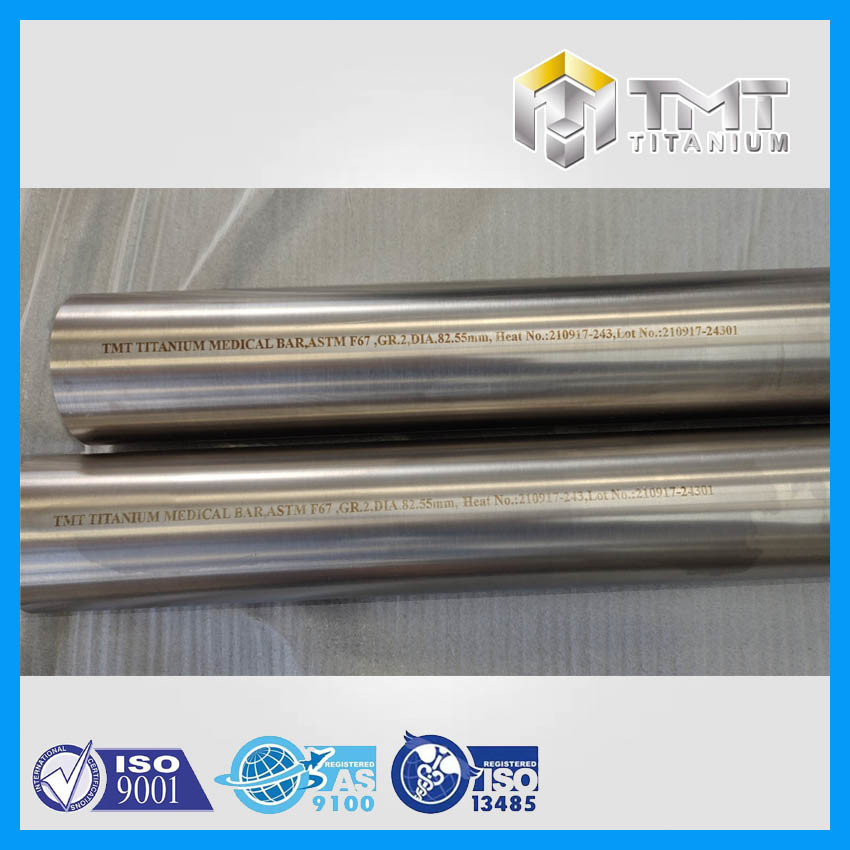

ASTM F67/ISO5832-2 GR.2 FOR MEDICAL BAR

Catagories
ASTM F67/ISO5832-2 GR.2 FOR MEDICAL BAR

ASTM F67/ISO5832-2 GR.2 FOR MEDICAL BAR

Product Details
Place of Origin: China
Brand Name: TMT
Certification: ISO9001,ISO13485
Model Number: GR.2
Payment & Shipping Terms
Minimum Order Quantity: Ready Stock
Price: 23.5 USD-32.6 USD/KG
Packaging Details: Standard exporting packing
Delivery Time: 5-15 working days
Payment Terms: T/T, L/C
Supply Ability: 500 tons/month

Detail Information

Product Description

Product Introduction
Product name
Pure Titanium bar/Pure Titanium rod/Titanium alloy bar/Tianium alloy rod
Standard
ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc
Titanium Type
Commercially Pure(CP) / Titanium alloy
Grade
Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333
BT1-00 BT1-0 BT1-2
Diameter
3-350mm
Length
Max6000mm
Technique
Forging ,Machining
Surface
Acid surface or polishing, sand blasted surface
Shape
Round, flat, square, hexagonal
Application
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.



Grade and Chemical Composition (%) :
Grade
N(≤)
C(≤)
H(≤)
Fe(≤)
O(≤)
Al(≤)
V(≤)
Ni(≤)
Ti
GR1
0.03
0.08
0.015
0.2
0.18
/
/
/
bal
GR2
0.03
0.08
0.015
0.3
0.25
/
/
/
bal
GR3
0.05
0.08
0.015
0.3
0.35
/
/
/
bal
GR4
0.05
0.08
0.015
0.2
0.4
/
/
/
bal
GR5
0.05
0.08
0.015
0.4
0.2
5.5~6.75
3.5~4.5
/
bal
GR7
0.03
0.08
0.015
0.3
0.25
/
/
/
bal
GR9
0.03
0.08
0.015
0.25
0.15
2.5~3.5
2.0~3.0
/
bal
GR12
0.03
0.08
0.015
0.3
0.25
/
/
0.6~0.9
bal
GR23
0.05
0.08
0.012
0.25
0.13
5.5~6.5
3.5~4.5

bal
Mechanical property
Grade
Tensil strength(≥)
Yeild strength(≥))
Elongation(≥)%)
ksi
Mpa
ksi
Mpa
GR1
35
240
20
138
24
GR2
50
345
40
275
20
GR3
65
450
55
380
18
GR4
80
550
70
483
15
GR5
130
895
120
828
10
GR7
50
345
40
275
20
GR9
90
620
70
483
15
GR12
70
483
20
345
18
GR23
120
828
110
760
10
Product characteristics
Titanium is a chemical element with the symbol Ti and atomic number 22. It is a lustrous transition metal with a silver color, low density, and high strength. Titanium is resistant to corrosion in sea water, aqua regia, and chlorine.
Molecular Weight
47.86 (Note: all properties listed are for bulk titanium metal)
Appearance
Silvery
Melting Point
1668 °C
Boiling Point
3560 °C
Density
4.54 g/cm3
Solubility in H2O
N/A
Crystal Phase / Structure
Hexagonal
Electrical Resistivity
42.0 microhm-cm @ 20 °C
Electronegativity
1.45 Paulings
Heat of Fusion
14.15 kJ/mol
Heat of Vaporization
425 kJ/mol
Poisson's Ratio
0.32
Specific Heat
0.125 Cal/g/K @ 25 °C
Tensile Strength
140 MPa
Thermal Conductivity
21.9 W/(m·K) @ 298.2 K
Thermal Expansion
8.6 µm·m-1·K-1 (25 °C)
Vickers Hardness
830–3420 MPa
Young's Modulus
116 GPa



Product Catalog
1.Round bar/rod
1)Hot rolled black bar: (5-400)x6000mm or according to your requirement.
2)Acid round bar: (5-400)x6000mm or according to your requirement.
3)Cold drawn bright bar: (1-20)x6000mm or according to your requirement.
4)Polishing round bar: (5-400)x6000mm or according to your requests.
2.Angle bar/rod
1)Hot rolled angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests
2)Acid angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests.
3)Cold drawn angle bar: (16-200)x(16-200)x(3-18)x(3000-9000)mm or according to your requests.
3. Flat bar/rod
1)Hot rolled flat bar: (3-30)*(10-200mm)*6000mm or according to your requests.
2)Cold drawn flat bar: (3-30)*(10-200mm)*6000mm or according to your requests.
4. Channel bar/rod
1)Hot rolled channel bar: (5-100)x6000mm or according to your requests.
2)Acid channel bar: (5-100)x6000mm or according to your requests.
3)Cold drawn channel bar: (1-20)x6000mm or according to your requests
5.Hexagon bar/rod
1)Hot rolled hexagon bar: (5-100)x6000mm or according to your requests.
2) Acid hexagon bar: (5-100)x6000mm or according to your requests.
3)Cold drawn hexagon bar: (1-20)x6000mm or according to your requests t.
4)Polishing hexagon bar: (5-100)x6000mm or according to your requests.
6. H Steel bar/rod
1)Hot rolled H bar: (5-100)x6000mm or according to your requests.
2)Acid H bar: (5-100)x6000mm or according to your requests.
3)Cold drawn H bar: (1-20)x6000mm or according to your requests.
7. Square bar/rod
1)Hot rolled black bar: (5*5-400*400)x6000mm or according to your requests.
2)Acid square bar: (5*5-400*400)x6000mm or according to your requests.
3)Cold drawn square bar: (1*1-20*20)x6000mm or according to your requests.
4)Polishing square bar: (5*5-400*400)x6000mm or according to your requests
